3.3.7: Cross Section Range Selector
The cross section library that comes with Karamba3D contains roughly 22 000 profiles. In order to reduce the amount of information the list can be shortened by applying selection criteria on it using the β€œCross Section Range Select” component (see fig. 3.3.7.1). The input-plugs β€œmaxH” and β€œmaxW” let you limit the list according to maximum cross section height and width. The submenu which unfolds when clicking on the black β€œselect”-bar offers further options for narrowing the search: country of origin, general shape and family name.

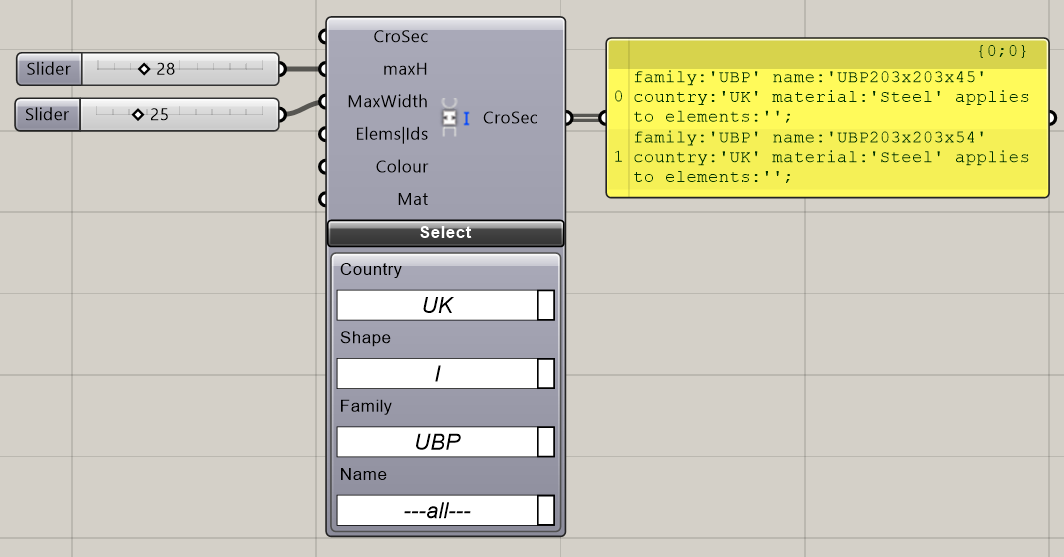

Fig. 3.3.7.1: Selection of a range of cross sections from among a given list
In case one does not supply a list of cross sections at the β€œCroSec” input-plug, the cross section table that comes with Karamba3D is used by default.
